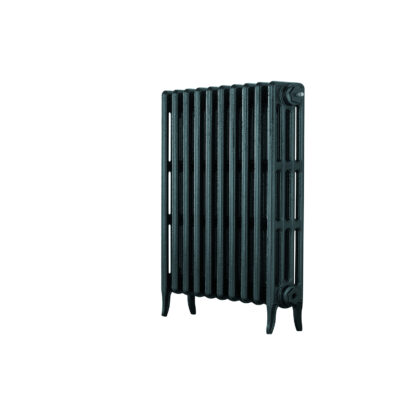

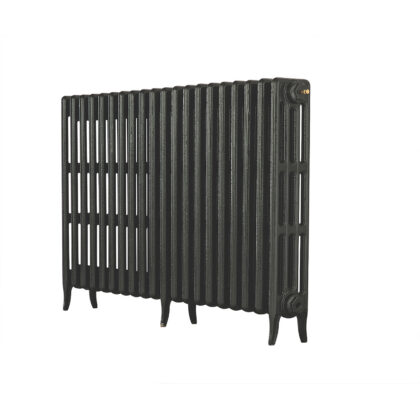

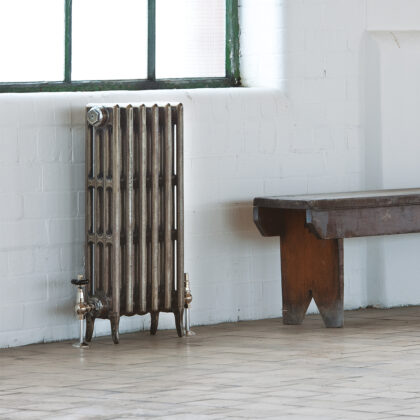

Arroll Neo Classic 4 Column Cast Iron Radiator
Bespoke Arroll Neo Classic 4 Column cast iron radiator with a durable 2-pack paint finish. Based on a Victorian design first introduced in 1890, with a distinctive pointed foot. Available in 4 heights (460–810mm), 6 widths (10–20 sections), and 7 colour options. Made to order by Arroll in Belfast. Free delivery to Northern Ireland & Ireland.
Secure Packaging
Authentic Antiques
Expert Support
<![CDATA[
The Arroll Neo Classic 4 Column is perhaps the most recognisable of all cast iron radiators. Based on a Victorian design first introduced in 1890, it features a distinctive pointed foot that sets it apart from the flat-footed Victorian model. The simple, elegant profile makes it equally at home in period properties and modern interiors.
Each radiator is bespoke — built to your specification by Arroll in Belfast and professionally finished in a durable 2-pack paint. Choose your height, number of sections, and colour to suit your space.
Configuration Options
- Heights: 460mm, 660mm, 760mm, 810mm
- Sections: 10 (634mm) to 20 (1234mm)
- Colours: White, Anthracite, Cream, Black, Cast Grey, Pewter, or any RAL colour
Technical Specifications
| 460 | 660 | 760 | 810 | |
|---|---|---|---|---|
| Height (leg section) | 455mm | 650mm | 756mm | 813mm |
| Depth | 140mm | 140mm | 140mm | 160mm |
| Section width | 60mm | |||
| Heat output per section (ΔT50) | 57W / 196 BTU | 78W / 266 BTU | 92W / 313 BTU | 103W / 351 BTU |
| Heat output per section (ΔT60) | 62W / 213 BTU | 98W / 336 BTU | 115W / 395 BTU | 129W / 443 BTU |
| Weight per section (empty) | 3.0–3.4 kg | 4.4–4.8 kg | 5.4–5.7 kg | 5.8–6.5 kg |
| Bottom inlet to floor | 110mm | 110mm | 114mm | 126mm |
| Pipe centres to skirting | 70mm | 70mm | 70mm | 80mm |
All measurements are approximate — Arroll allow a 4% +/- tolerance on all sizes. Do not fit pipe centres or alter pipework until the radiator has arrived and been positioned.
